AOI vs. X-Ray Inspection: Which Method is Right for Your PCB Assembly?
- Harshit Shah
- 9 hours ago
- 6 min read
When it comes to PCB assembly, finding defects is not the challenge finding them at the right time and in the right way is what makes the difference. As electronic devices become smaller and more complex, even the smallest defect can impact performance or lead to failure.
This is where AOI inspection and X-ray inspection come into play. Both are widely used in PCB assembly quality control, but they serve different purposes. Understanding AOI vs. X-ray inspection differences helps manufacturers select the right inspection method based on design complexity, cost, and reliability needs.
Key Takeaways
AOI inspection and X-ray inspection are both important for maintaining high-quality PCB assembly.
AOI is best suited for detecting visible surface defects quickly in high-volume production.
X-ray inspection is used to detect hidden defects in complex components like BGAs and multilayer boards.
Each method has its own strengths and limitations, so the choice depends on product complexity and requirements.
Combining both methods provides better inspection coverage and improves overall reliability.
Using the right PCB inspection methods helps reduce defects, improve consistency, and enhance product performance.
Table of Contents
Why Inspection Matters in Modern PCB Assembly?
Modern Printed circuit board feature dense layouts, fine-pitch components, and multilayer structures. While these advancements improve functionality, they also make defect detection more challenging.
Solder-related issues are widely recognized as one of the most common problems in PCB assembly. This makes advanced PCB inspection methods, such as automated optical inspection PCB and X-ray inspection, an important part of production.
Effective inspection helps reduce rework, improve consistency, and support reliable PCB quality inspection across manufacturing processes.
What Is AOI in PCB Assembly?
AOI (automated optical inspection) is a visual inspection method that uses cameras to scan the PCB surface.
In automated optical inspection PCB, images are captured and compared with a reference design to detect visible defects such as missing PCB components or solder issues. This method is widely used in SMT inspection methods due to its speed and efficiency in high-volume production.
What Is X-Ray Inspection in PCB Assembly?
X-ray inspection is used to examine the internal structures of a PCB that cannot be seen visually.
It is especially useful for inspecting hidden solder joints in PCB components like BGAs and multilayer boards. This makes it an important tool in advanced PCB inspection methods. In AOI vs. X-ray PCB inspection, X-ray stands out for its ability to detect internal defects.

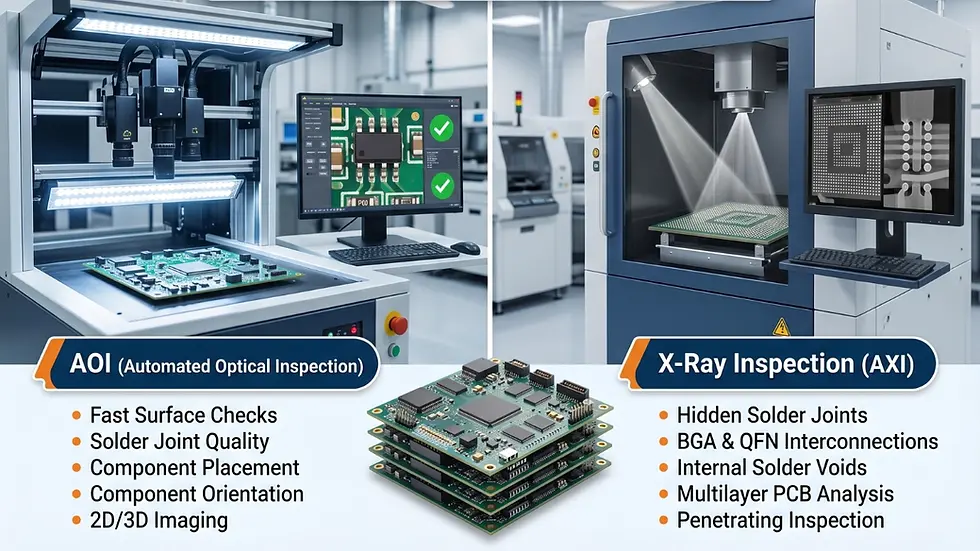

AOI vs X-Ray Inspection: Side-by-Side Comparison
To better understand the differences, the table below compares AOI vs. X-ray inspection across key factors such as speed, cost, and defect detection capability.
Feature | AOI Inspection | X-Ray Inspection |
Inspection Type | Surface inspection | Internal inspection |
Speed | High-speed | Slower |
Defect Detection | Visible defects | Hidden defects |
Cost | Lower | Higher |
Best Use | SMT surface inspection | BGA and complex PCB inspection |
Advantages & Limitations of AOI
AOI is widely used due to its speed and efficiency, but like any method, it has both strengths and limitations.
Advantages of AOI
These benefits of AOI make it a standard tool in SMT manufacturing lines.
High-speed inspection for mass production
Detects surface defects quickly
Supports automated PCB assembly quality control
Cost-effective for large-scale production
Limitations of AOI
These are common limitations of AOI
Cannot detect hidden defects
Limited effectiveness for complex components
May require manual verification
How AOI Inspection Works?
AOI inspection uses high-resolution cameras and controlled lighting to scan the PCB.
The system compares captured images with predefined standards. Any variation, such as incorrect placement or solder issues, is flagged for review. This process enables fast and consistent automated optical inspection during production.
What Defects Can AOI Detect?
AOI inspection is effective in identifying visible defects such as:
Missing components
Misaligned parts
Solder bridges
Polarity errors
Excess or insufficient solder
These are common issues detected in PCB quality inspection.
Advantages and Limitations of X-Ray Inspection
X-ray inspection provides deeper visibility, especially for complex PCB designs.
Advantages of X-Ray Inspection
Detects hidden defects inside components
Ideal for BGA and multilayer boards
Provides a detailed internal analysis
Limitations of X-Ray Inspection
Higher equipment cost
Slower inspection speed
Requires skilled operators
How X-Ray Inspection Works?
X-Ray inspection works by passing X-rays through the PCB to create internal images.
These images reveal hidden defects such as voids, cracks, and poor solder connections. This makes it essential for advanced PCB inspection methods.
What Defects X-Ray Inspection Can Detect?
X-ray inspection is capable of detecting:
Solder voids
Hidden solder joint failures
BGA connection defects
Internal cracks
Voiding in BGA solder joints can affect thermal performance and long-term reliability, which is why X-ray inspection is often used in more demanding applications.
Where are AOI and X-Ray Inspection Used in PCB Assembly?
Both methods are used at different stages of production to ensure complete inspection coverage.
AOI inspection is used after component placement and soldering
X-ray inspection is used for complex components and internal analysis
Together, they strengthen PCB assembly quality control and improve reliability.
You may also read: How AOI Inspection Improve SMT Assembly Quality
AOI vs X-Ray Cost Comparison
Cost is an important factor when comparing AOI vs X-ray inspection PCB assembly.
AOI inspection is generally more affordable and better suited for high-volume production. A typical AOI system can range from $40,000 to $150,000+, depending on speed, resolution, and automation level.
X ray inspection requires a higher investment due to advanced imaging systems. In many cases, X-ray equipment can range from $80,000 to $300,000+, with more advanced systems costing even more.
Many manufacturers balance both methods based on product complexity, inspection requirements, and budget.
You may also read: How Much Does PCB Assembly Cost? A Breakdown for Small and Large Orders
Future Trends in PCB Inspection: AOI and X-Ray
Inspection technologies continue to evolve with advancements in automation and data analytics.
Key trends include:
AI-based defect detection
Faster inspection systems
Integration with smart manufacturing
Improved accuracy in both AOI and X-ray
These innovations are shaping the future of automated optical inspection and X-ray inspection.
AOI vs. X-Ray Inspection: Which Method is Better for PCB Assembly
There is no one-size-fits-all answer in AOI vs. X-ray inspection.
Use AOI inspection for fast and cost-effective surface inspection
Use X-ray inspection for complex and hidden defect detection
The right choice depends on your product requirements and quality expectations.
Hybrid Inspection Approach for High-Reliability PCB Assembly
Many manufacturers use both AOI and X-ray inspection together. This hybrid approach combines automated optical inspection PCB with X-ray analysis to ensure complete defect detection. It improves PCB assembly quality control and supports high-reliability applications such as medical, aerospace, and automotive electronics.
Final Thoughts
Both AOI inspection and X-ray inspection play important roles in modern PCB assembly manufacturing. Each method has its strengths, and together they provide a more complete inspection solution.
Understanding AOI vs. X-ray inspection PCB assembly helps manufacturers improve quality, reduce defects, and deliver reliable electronic products in today’s competitive market. If you're looking for quick turn PCB assembly services , then A2Z Electronics LLC is a good choice. Connect with us today for PCB assembly quote
Frequently Asked Questions
What defects can AOI detect that X-Ray cannot?
AOI inspection detects visible surface defects such as missing components, misalignment, polarity errors, and solder bridges that may not require internal imaging.
Does AOI inspection reduce PCB assembly rework?
Yes, AOI inspection helps detect defects early in the process, which reduces rework, saves time, and lowers production costs.
Can X-Ray detect hidden solder defects?
Yes, X-ray inspection is specifically used to detect hidden defects such as voids, internal cracks, and BGA solder joint issues.
Is AOI enough for SMT assembly?
AOI inspection is effective for surface defects, but it may not be enough for complex boards. For components like BGAs, additional inspection methods are often required.
Which inspection method is faster for production?
AOI inspection is faster and better suited for high-volume production compared to X-ray inspection.
When should AOI and X-Ray be used together in PCB assembly?
Both methods should be used together when dealing with complex PCBs, high-reliability products, or assemblies with hidden components.
Why do some PCB assemblies require both methods?
Some assemblies include both visible and hidden components. Using both methods ensures complete inspection coverage and better PCB assembly quality control.
Is X-Ray inspection safe for circuit board components?
Yes, X-ray inspection is safe for PCB components when used within standard industrial limits.
Which inspection is better for high-volume SMT lines?
AOI inspection is generally better for high-volume SMT lines due to its speed and efficiency.
